SpringCloud项目搭建

为了便于管理,将所有项目放在一个工程中维护。

创建parent工程

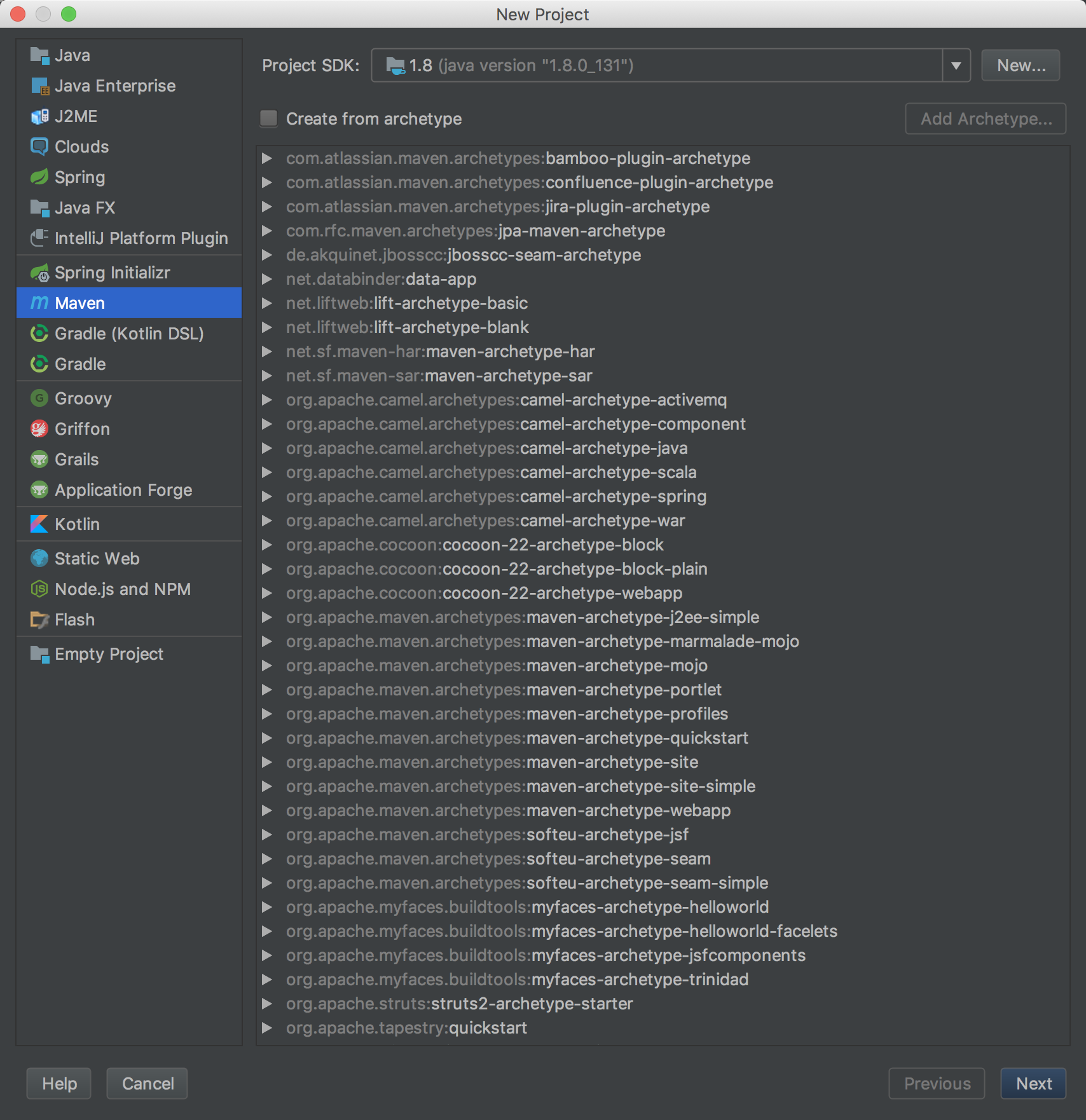

首先,new一个Project,选择maven,注意不要勾选create from archetype,填写GroupId、ArtifactId、Project name。创建完成后,将src目录删除。

parent工程

配置pom文件,添加SpringCloud依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
<packaging>pom</packaging>

<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.2.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>

<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<spring-cloud.version>Finchley.RC2</spring-cloud.version>
</properties>

<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>

<dependencies>
<!--各个子项目共用的一些依赖-->
<!--test-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>

<!--springboot-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>

<repositories>
<repository>
<id>spring-milestones</id>
<name>Spring Milestones</name>
<url>https://repo.spring.io/milestone</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>

创建Eureka注册中心

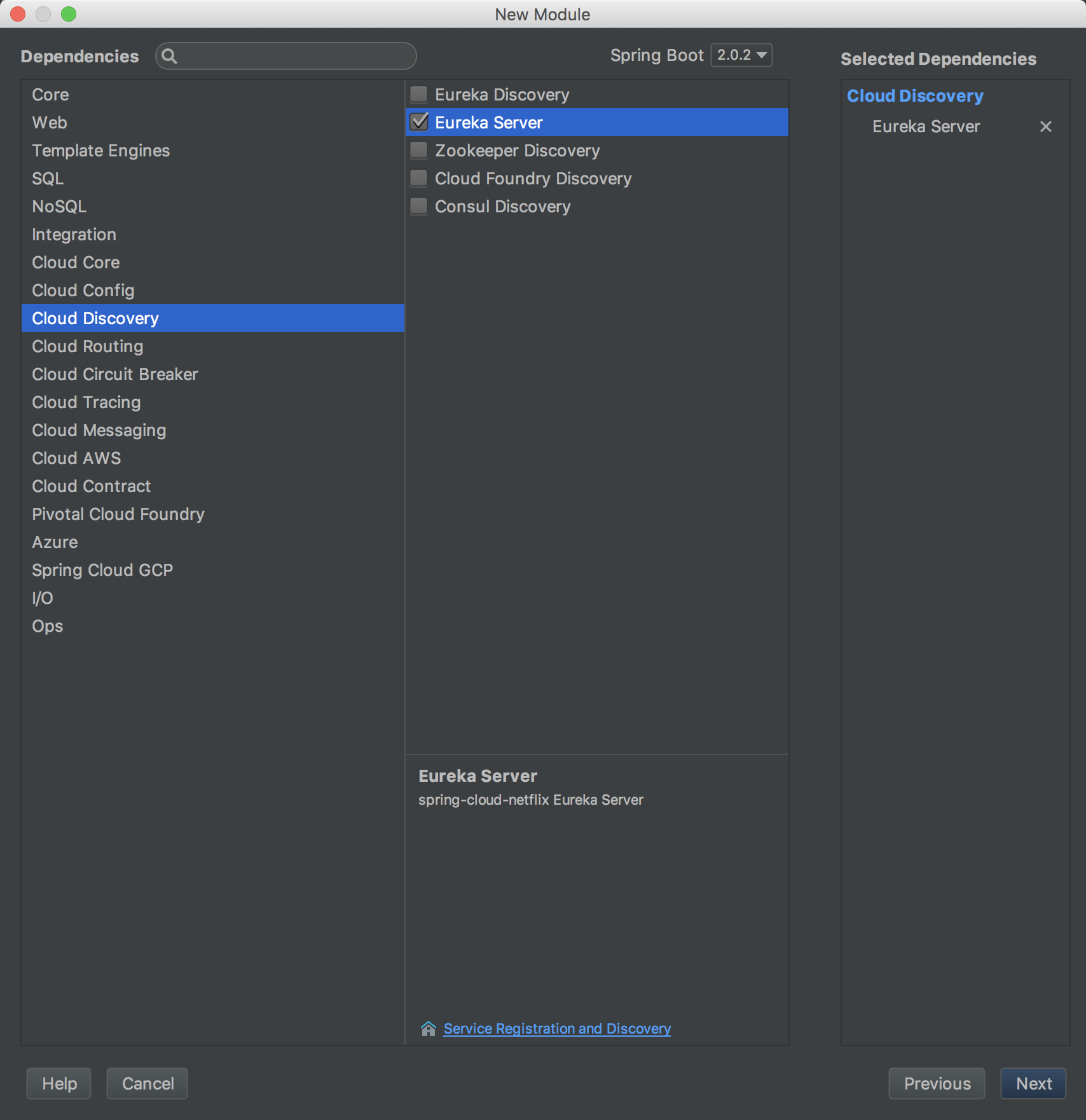

创建一个新的Module,选择Spring Initializr,填写GroupId、ArtifactId、Name,选择Cloud Discovery - Eureka Server,命名Module Name,完成。

创建Eureka

创建后会自动在parent的pom中添加模块,如果没有,手动添加,如下:

1
2
3
4
<modules>
<module>eureka-server</module>
<module>service</module>
</modules>

编辑该模块中的pom文件:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<parent>
<groupId>com.woniu</groupId>
<artifactId>springcloud-parent</artifactId>
<version>1.0-SNAPSHOT</version>
</parent>

<modelVersion>4.0.0</modelVersion>
<artifactId>eureka-server</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>jar</packaging>

<name>eureka-server</name>
<description>Eureka-Server</description>

<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
</dependencies>

对应Application类添加注解:

1
2
3
4
5
6
7
8
@SpringBootApplication
@EnableEurekaServer
public class EurekaServersApplication {

public static void main(String[] args) {
SpringApplication.run(EurekaServersApplication.class, args);
}
}

编辑application.yml配置文件:

1
2
3
4
5
6
7
8
9
10
11
server:
port: 8081
eureka:
instance:
hostname: localhost
# 该server默认同时也是client
client:
registerWithEureka: false
fetchRegistry: false
serviceUrl:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

创建服务

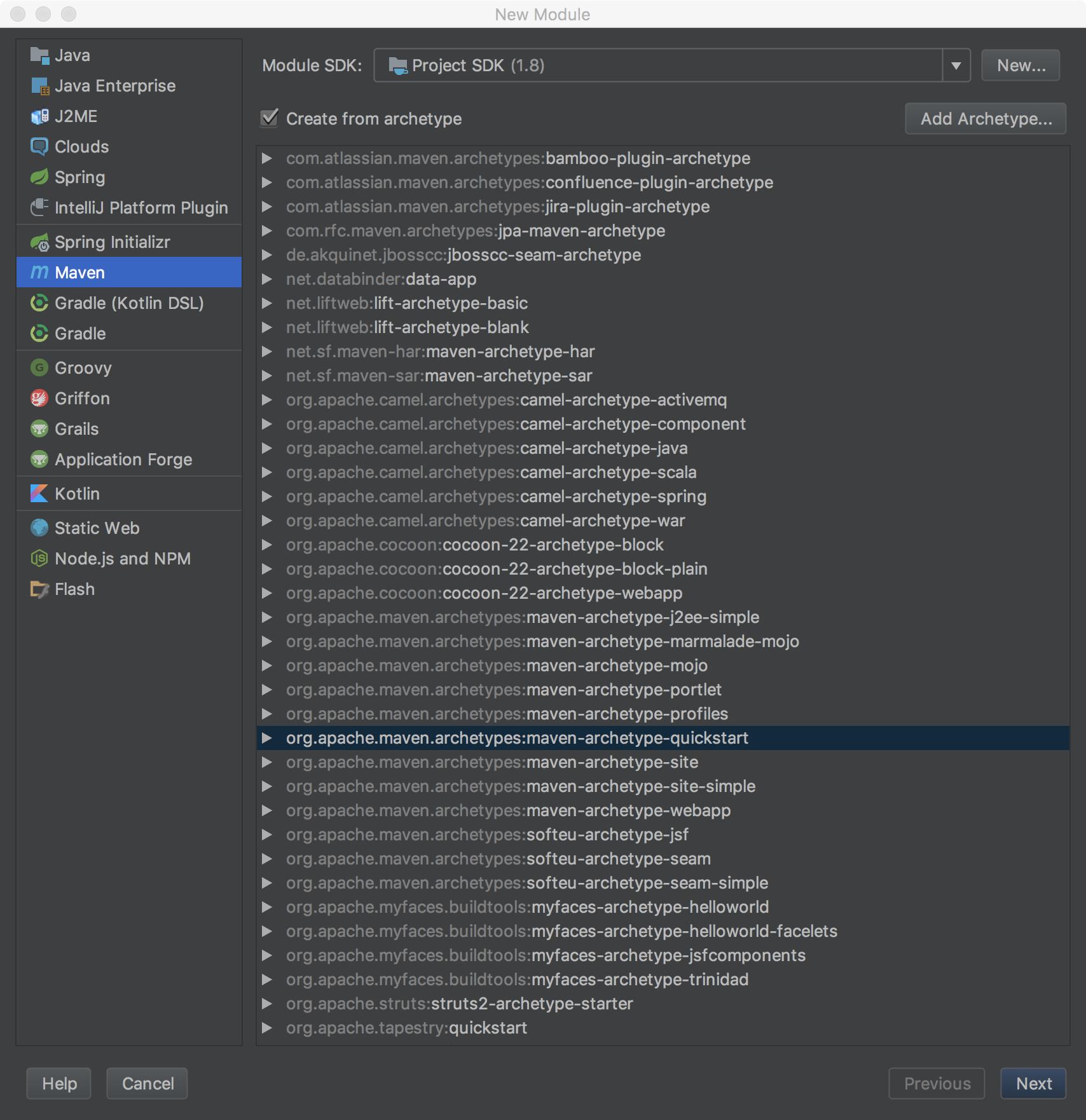

创建一个新的Module,仍然选择Maven,勾选create from archetype,并选择quickstart,填写ArtifactId、Module Name,创建完成。

创建service

修改pom文件:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<parent>
<artifactId>springcloud-parent</artifactId>
<groupId>com.woniu</groupId>
<version>1.0-SNAPSHOT</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>service</artifactId>
<name>service</name>
<packaging>jar</packaging>

<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
</dependencies>

在main下面创建resources目录,该目录下创建application.yml文件:

1
2
3
4
5
6
7
8
9
spring:
application:
name: service
eureka:
client:
serviceUrl:
defaultZone: http://localhost:8081/eureka/
server:
port: 8082

在对应Application类添加注解:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@SpringBootApplication
@EnableEurekaClient
@RestController
public class ServiceApplication
{
@GetMapping("/hello")
public String service(){
return "world";
}

public static void main( String[] args )
{
SpringApplication.run(ServiceApplication.class, args);
}
}

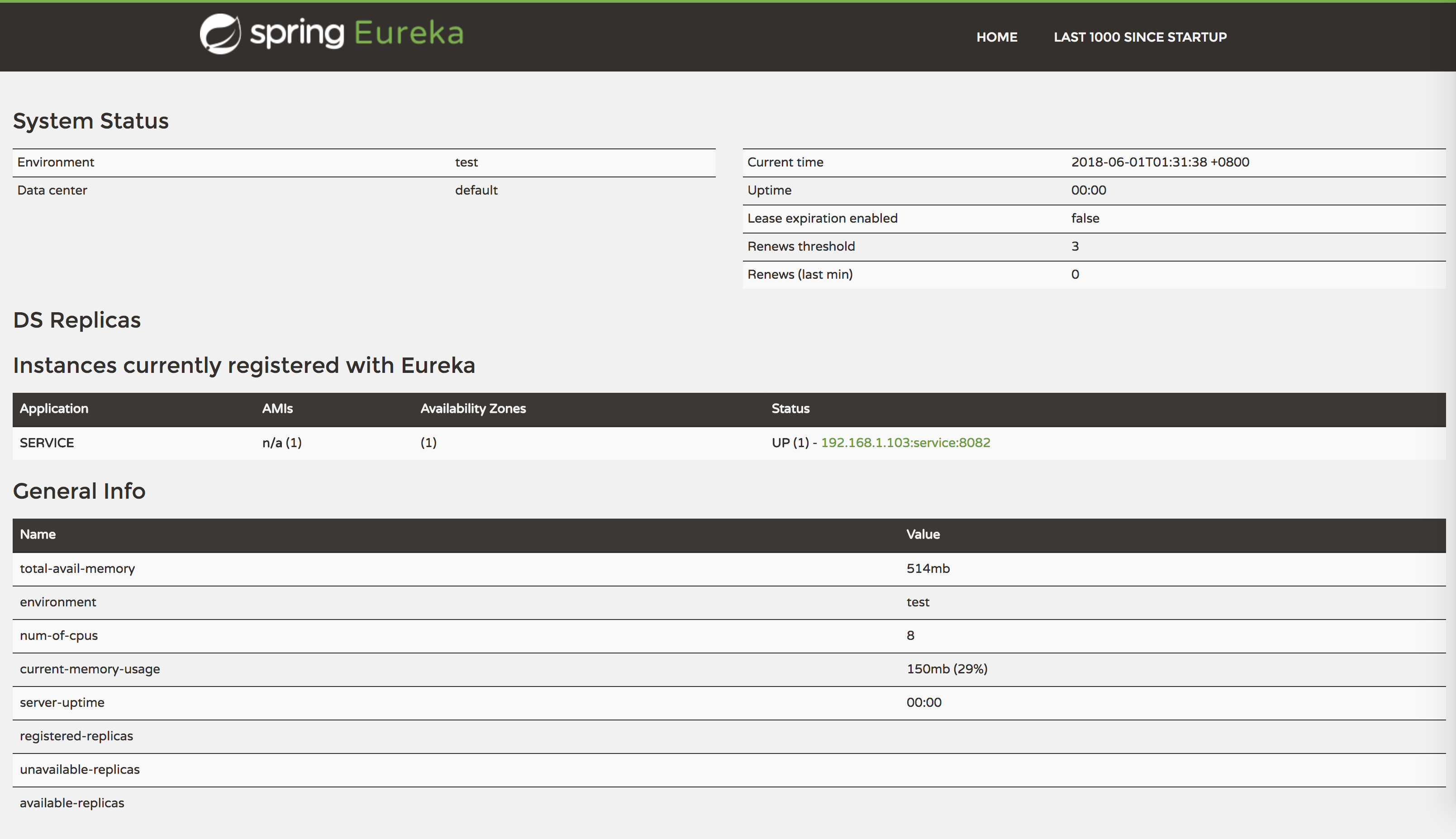

最后依次启动eureka-server、service服务,访问localhost:8081,访问成功。

run

@EnableDiscoveryClient、@EnableEurekaClient区别:

@EnableDiscoveryClient基于spring-cloud-commons,其discovery service有多种实现,Eureka、Consul、Zookeeper等。而@EnableEurekaClient只针对spring-cloud-netflix服务;

@EnableEurekaClient实现中包含@EnableDiscoveryClient;
